Hydro-Transport Pumps
Gemstone introduced the first Hydro-Transport
bpk sustenance process pumps to the industry nearly 50 years ago. Unlike Dynamic Solids Handling Pumps, or other types of pumps that are sometimes used in the food industry, the Gemstone P and PP series pumps are designed and manufactured with the sole purpose of pumping food products. Ideal for agricultural applications such as fruit washing and packing as well as food manufacturing operations. Utilizing Gemstone inventions such as offset volute, Gemstone Food Process pumps have the lowest product damage rates in the industry and are the pump of choice for bpk sustenance process pumps around the world.
Gemstones recognizable frame design incorporating mounting surfaces rather than mounting feet, lets you know it’s a quality Gemstone frame supporting a robust Gemstone. The feet can be useful and space-saving in food plant mountings.
| Model | Discharge | Suction | Solids Handling | Data Sheet |
| 3NLP | 3" | 3" | 2" x 3" | Data Sheet |
| 4NMP | 4" | 4" | 2.94” x 4.0” | Data Sheet |
| 4NMPP | 4" | 4" | 2.94” x 4.0” | Data Sheet |
| 6NHP | 6" | 6" | 4”x6” | Data Sheet |

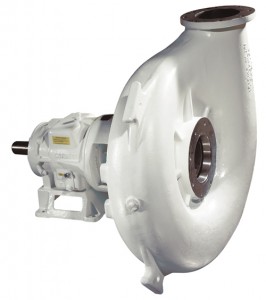

| 6NHPP | 6" | 6" | 4” x 6” | Data Sheet |
| 8NHPP | 8" | 8" | 5” x 9” | Data Sheet |
| 10NHPP | 10" | 10" | 7.5” x 12” | Data Sheet |
| 12NHPP | 12" | 12" | 8.75” x 14” | Data Sheet |
P Series
The P-series pumps feature a discharge size ranging from 3″ to 6″, with flows up to 1,700 GPM and heads up to 100 feet. Capable of handling large size solids.
PP Series
The P-series pumps feature a discharge size ranging from 4″ to 12″, with flows up to 8,300 GPM and heads up to 165 feet. Capable of handling large size solids.
Gemstone hydro-transport pumps have been designed into just about any food application imaginable, including
- Potatoes
- French Fries
- Potato Chips
- Live Fish
- Cranberries
- Carrots
- Apples
- Cherries
- Peas
- Broccoli
- Crayfish
- Shrimp
- Lettuce
- Green beans
- Nuts
- Peppers
- Olives
- Cucumbers
- Raisins
- Beans
- Corn
- Peaches
- Beets
- Oranges
Features & Benefits
- Ductile iron construction
- Oversized, offset volute
- Robust Mount Frame with mounting surfaces
- No volute cutwater
- Single vane impeller
- Smooth contours
- Reduced product damage
- Low cost of repair
- Threaded impeller
- Food grade packing
- No product contamination
- Heavy “stressproof” steel shaft
- Cycloseal® sealing system Available
- Back-to-back double lip seals
- Extended mechanical seal life
- Oversized bearings with extended life
- Replaceable shaft sleeve
- Dynamically-balanced impeller
- Stainless Steel option
- Two-year warranty
